Flat Panel Steel Liner Tanks

Flat Panel Steel Liner Tank

Kingspan’s Flat Panel Tanks are suitable for a wide range of storage applications, fabricated in Australia and to suit AS2304:2019 Water Storage Tanks for Fire Protection systems.

Our Flat Panel Tanks may be used for many other storage applications with a variety of different liner membranes to suit the chemical analysis and source of water to be stored.

Kingspan’s Flat Panel tanks are customisable to suit your project, footprint and height, we are also able to custom design to suit project specific requirements.

Suitable Applications

Fire Fighting
Potable Water
Agriculture and Horticulture
Wastewater Storage & Treatment
Mining

Contact Us To Discuss Your Project

PRoduct Features

Available in Galvanised, Grade 304 or 316 Stainless steel
Powder Coating option available on Galvanised walls sheets
Options of 0.42 and 0.48 BMT Roof Sheeting + Zinc or Colorbond
Can be installed on solid slab or ring beam
Fully AS2304:2019 Compliant for Fire, Sprinkler, Hydrant or Booster Use

Wall Height Panels		2	3	4	5	6	7	8	9	10	11	12	13	14	15	16	17	18	19	20
Height		2.34	3.48	4.62	5.76	6.90	8.04	9.18	10.32	11.46	12.60	13.74	14.88	16.02	17.16	18.30	19.44	20.58	21.72	22.86
Tank Series	Diameter	Nominal Capacity (m3)
4	2.65	13	19	25	32	38	44	51	57	63	69	76	82	88	95	101	107	113	120	126
5	3.31	20	30	40	50	59	69	79	89	99	108	118	128	138	148	158	167	177	187	197
6	3.97	29	43	57	71	86	100	114	128	142	156	170	184	199	213	227	241	255	269	283
7	4.63	39	59	78	97	116	136	155	174	193	213	232	251	270	289	309	328	347	366	386
8	5.30	52	77	102	127	152	177	202	227	253	278	303	328	353	378	403	428	453	479	504
9	5.96	65	97	129	161	192	224	256	288	320	351	383	415	447	479	510	542	574	606	637
10	6.62	81	120	159	198	238	277	316	355	395	434	473	512	552	591	630	669	709	748	787
11	7.28	97	145	192	240	287	335	382	430	477	525	572	620	667	715	762	810	857	905	952
12	7.95	116	173	229	286	342	399	455	512	568	625	681	738	794	851	907	964	1020	1077	1133
13	8.61	136	202	269	335	401	468	534	600	667	733	799	866	932	998	1065	1131	1197	1264	1330
14	9.27	158	235	312	389	466	543	619	696	773	850	927	1004	1081	1158	1235	1312	1389	1466	1543
15	9.93	181	270	358	446	535	623	711	799	888	976	1064	1153	1241	1329	1418	1506	1594	1683	1771
16	10.59	206	307	407	508	608	709	809	910	1010	1111	1211	1311	1412	1512	1613	1713	1814	1914	2015
17	11.26	233	346	460	573	687	800	913	1027	1140	1254	1367	1481	1594	1707	1821	1934	2048	2161	2275
18	11.92	261	388	515	643	770	897	1024	1151	1278	1406	1533	1660	1787	1914	2041	2168	2296	2423	2550
19	12.58	291	433	574	716	858	999	1141	1283	1424	1566	1708	1849	1991	2133	2274	2416	2558	2700	2841
20	13.24	322	479	636	793	950	1107	1264	1421	1578	1735	1892	2049	2206	2363	2520	2677	2834	2991	3148
21	13.90	355	528	701	875	1048	1221	1394	1567	1740	1913	2086	2259	2432	2605	2778	2952	3125	3298	3471
22	14.57	390	580	770	960	1150	1340	1530	1720	1910	2100	2290	2480	2669	2859	3049	3239	3429	3619	3809
23	15.23	426	634	841	1049	1257	1464	1672	1880	2087	2295	2502	2710	2918	3125	3333	3541	3748	3956	4163
24	15.89	464	690	916	1142	1368	1594	1820	2047	2273	2499	2725	2951	3177	3403	3629	3855	4081	4307	4533
25	16.55	504	749	994	1239	1485	1730	1975	2221	2466	2711	2957	3202	3447	3692	3938	4183	4428	4674	4919
26	17.21	545	810	1075	1341	1606	1871	2137	2402	2667	2932	3198	3463	3728	3994	4259	4524	4790	5055	5320
27	17.88	587	873	1160	1446	1732	2018	2304	2590	2876	3162	3449	3735	4021	4307	4593	4879	5165	5451	5737
28	18.54	632	939	1247	1555	1862	2170	2478	2786	3093	3401	3709	4016	4324	4632	4940	5247	5555	5863	6170
29	19.20	678	1008	1338	1668	1998	2328	2658	2988	3318	3648	3978	4308	4638	4969	5299	5629	5959	6289	6619
30	19.86	725	1078	1432	1785	2138	2491	2844	3198	3551	3904	4257	4611	4964	5317	5670	6024	6377	6730	7083
31	20.52	774	1151	1529	1906	2283	2660	3037	3414	3792	4169	4546	4923	5300	5678	6055	6432	6809	7186	7563
32	21.19	825	1227	1629	2031	2433	2834	3236	3638	4040	4442	4844	5246	5648	6050	6452	6854	7255	7657	8059
33	21.85	877	1305	1732	2160	2587	3014	3442	3869	4297	4724	5151	5579	6006	6434	6861	7289	7716	8143	8571
34	22.51	931	1385	1839	2292	2746	3200	3654	4107	4561	5015	5468	5922	6376	6830	7283	7737	8191	8644	9098
35	23.17	987	1468	1948	2429	2910	3391	3872	4352	4833	5314	5795	6276	6756	7237	7718	8199	8680	9160	9641
36	23.84	1044	1553	2061	2570	3079	3587	4096	4605	5113	5622	6131	6639	7148	7657	8165	8674	9183	9691	10200
37	24.50	1103	1640	2178	2715	3252	3789	4327	4864	5401	5939	6476	7013	7551	8088	8625	9163	9700	10237	10774
38	25.16	1163	1730	2297	2864	3430	3997	4564	5131	5697	6264	6831	7398	7964	8531	9098	9665	10231	10798	11365
39	25.82	1225	1822	2419	3016	3613	4210	4807	5404	6001	6598	7195	7792	8389	8986	9583	10180	10777	11374	11971
40	26.48	1289	1917	2545	3173	3801	4429	5057	5685	6313	6941	7569	8197	8825	9453	10081	10709	11337	11965	12593
41	27.15	1354	2014	2674	3334	3993	4653	5313	5973	6632	7292	7952	8612	9271	9931	10591	11251	11910	12570	13230
42	27.81	1421	2113	2806	3498	4190	4883	5575	6268	6960	7652	8345	9037	9729	10422	11114	11806	12499	13191	13883
43	28.47	1490	2215	2941	3667	4392	5118	5844	6570	7295	8021	8747	9472	10198	10924	11649	12375	13101	13827	14552
44	29.13	1560	2320	3079	3839	4599	5359	6119	6879	7638	8398	9158	9918	10678	11438	12198	12957	13717	14477	15237
45	29.79	1631	2426	3221	4016	4811	5605	6400	7195	7990	8784	9579	10374	11169	11964	12758	13553	14348	15143	15937
46	30.46	1705	2535	3366	4196	5027	5857	6688	7518	8349	9179	10010	10840	11671	12501	13332	14162	14993	15823	16654
47	31.12	1780	2647	3514	4381	5248	6115	6982	7849	8716	9583	10450	11317	12184	13051	13918	14785	15652	16519	17386
48	31.78	1856	2760	3665	4569	5473	6378	7282	8186	9090	9995	10899	11803	12708	13612	14516	15420	16325	17229	18133
49	32.44	1934	2877	3819	4761	5704	6646	7588	8531	9473	10415	11358	12300	13243	14185	15127	16070	17012	17954	18897
50	33.10	2014	2995	3976	4958	5939	6920	7901	8883	9864	10845	11826	12807	13789	14770	15751	16732	17713	18695	19676

Industrial Water Storage

Corrugated Steel Liner Tanks

Square Panel Tanks

Glass Fused to Steel & Epoxy Tanks

Tank Maintenance and Servicing

Fire Protection

Mining, Slurry and Process Water

Agriculture & Horticulture

Waste Water Storage

Anaerobic Digester, Biogas and Treatment

Town Reservoir or Large Scale Storage

Flat Panel Steel Liner Tanks

fabricated in Australia and to suit AS2304 Water Storage Tanks for Fire Protection systems

Flat Panel Steel Liner Tanks

Available with a variety of liner membranes to suit different applications

Flat Panel Steel Liner Tank

Suitable Applications

PRoduct Features

Industrial Water Storage

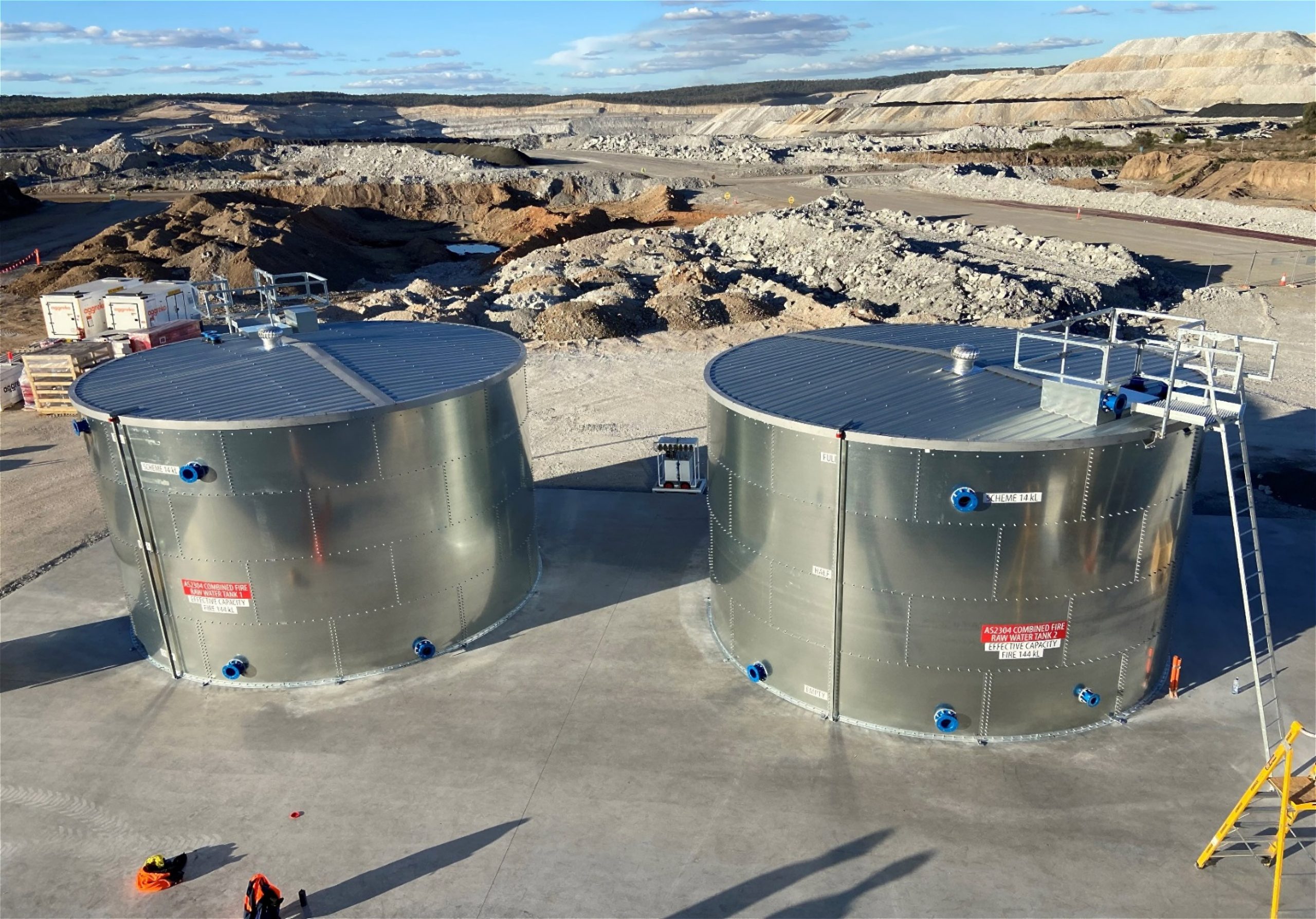

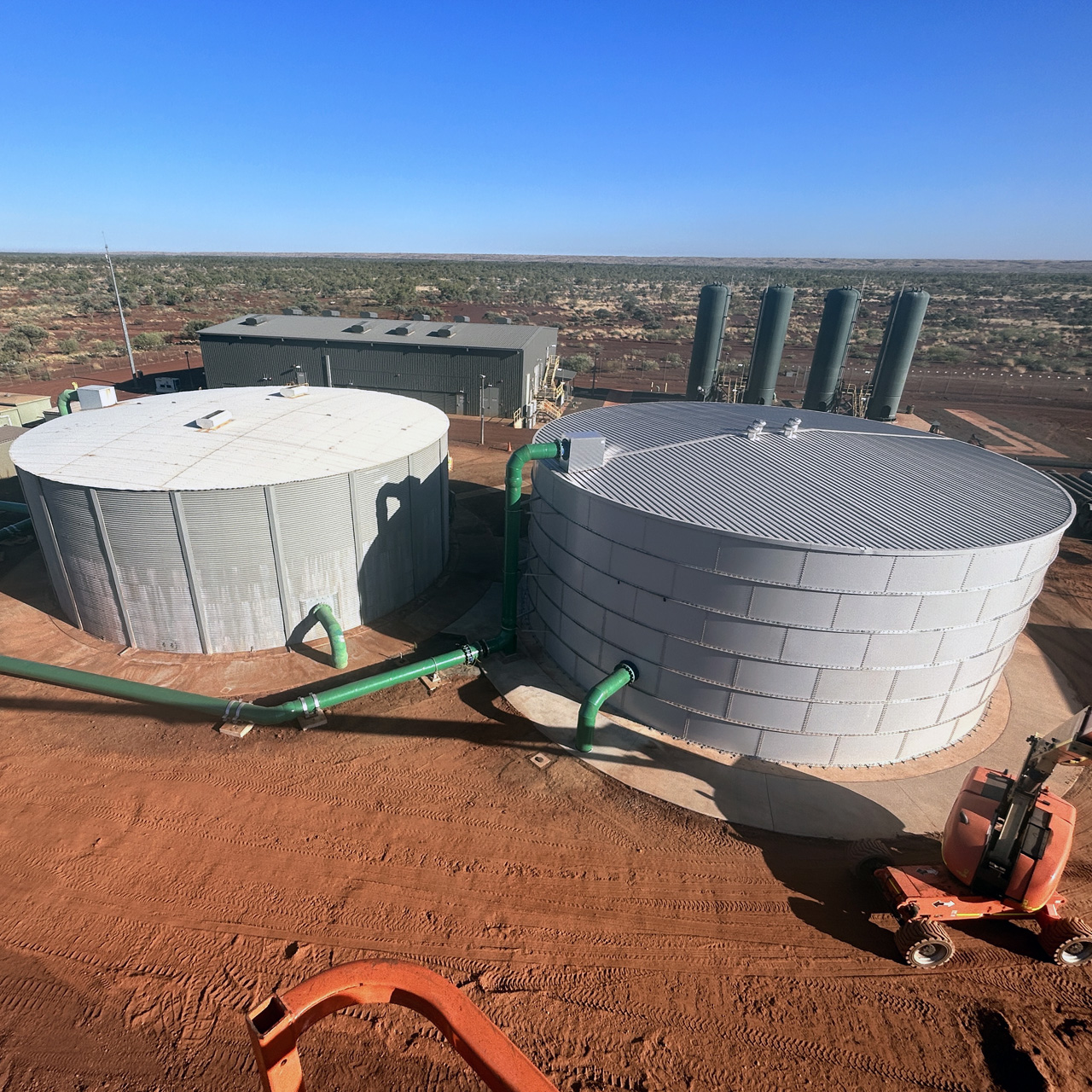

Mining Fire Tank
